Simplex SC-LC SM Fiber Optic Patch Cord 2.0mm 1M

# Product Overview

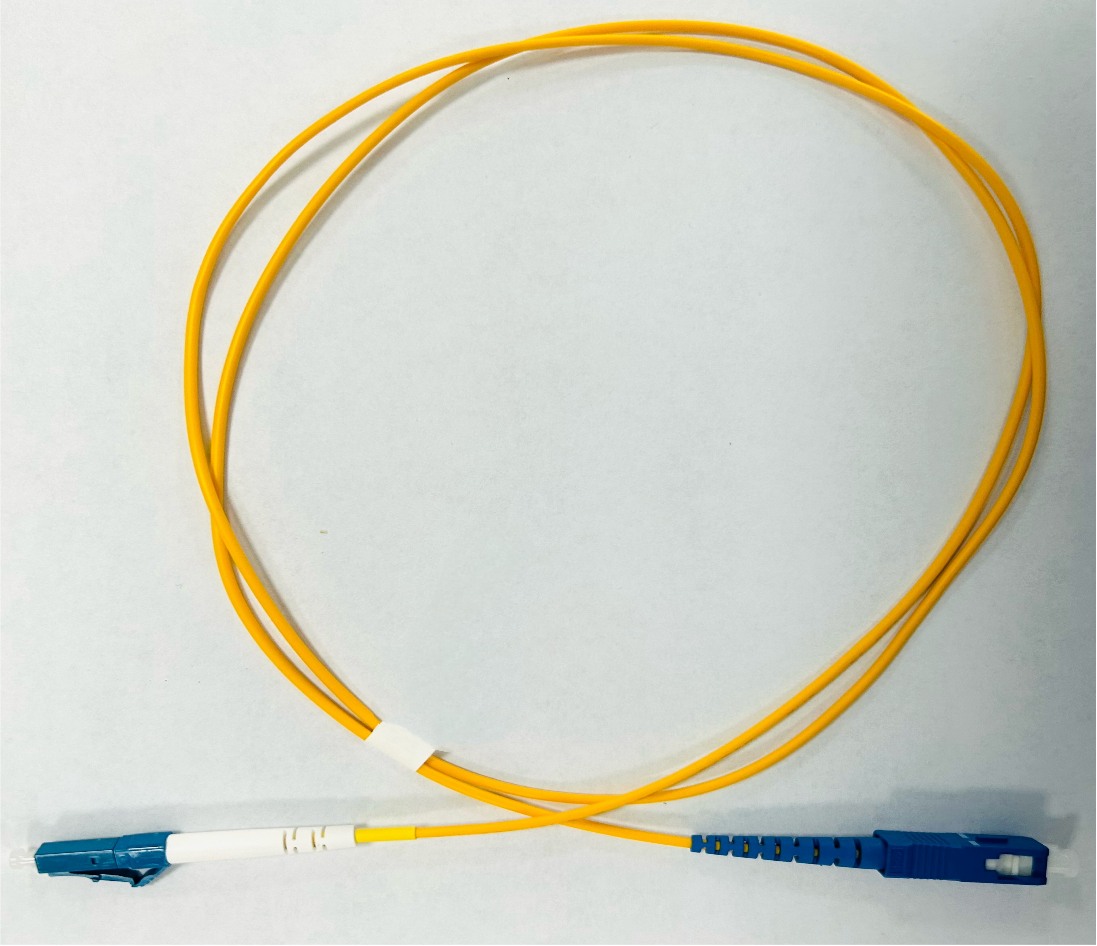

OLAM's Simplex SC-LC SM Fiber Optic Patch Cord is designed for single mode optical network connections in telecom systems, data centers, enterprise networks and optical distribution systems. Featuring a yellow single mode cable, SC/PC connector on one end and LC/PC connector on the other end, this 1-meter simplex patch cord provides reliable point-to-point optical signal transmission.

The cable is tested at 1310nm and 1550nm wavelengths. The LC/PC end supports IL <0.15dB and RL ≥50dB, while the SC/PC end supports IL <0.2dB and RL ≥50dB. Materials comply with RoHS requirements, and the product is compliant with YD/T 1272.5 standard requirements.

Custom lengths, connector types, jacket materials, cable diameter, cable color, labeling and packaging are available for project-based and OEM fiber optic cabling requirements.

SC-LC Simplex Configuration

Designed with SC connector on one end and LC connector on the other end, this patch cord supports flexible interconnection between different fiber optic equipment interfaces.

Single Mode Yellow Cable

The yellow cable jacket is commonly used for single mode fiber identification, helping simplify installation, maintenance and cable management.

2.0mm Cable Diameter

The 2.0mm cable structure provides a balance between flexibility and durability, suitable for patch panels, ODF racks, network cabinets and telecom rooms.

Low Insertion Loss

Tested at 1310nm and 1550nm wavelengths, the cable supports low insertion loss performance for stable optical signal transmission.

Reliable Return Loss Performance

Both LC/PC and SC/PC ends support RL ≥50dB, helping reduce signal reflection and improve transmission reliability.

1-Meter Standard Length

The 1M length is suitable for short-distance connection between optical modules, patch panels, distribution frames and network devices.

RoHS-Compliant Materials

Materials comply with RoHS requirements, supporting international environmental and safety requirements for telecom and network infrastructure projects.

YD/T 1272.5 Compliance

The product is compliant with YD/T 1272.5 standard requirements, making it suitable for telecom, data center and structured cabling applications.

Customization Available

Cable length, connector type, polish type, jacket material, cable diameter, color, labeling and packaging can be customized according to project requirements.

Item	Specification
Product Type	Fiber Optic Patch Cord
Cable Structure	Simplex Patch Cord
Fiber Type	Single Mode / SM
Cable Color	Yellow
Cable Diameter	2.0mm
Connector Type	SC-LC
LC End	LC/PC
SC End	SC/PC
Cable Length	1M
Test Wavelength	1310nm & 1550nm
LC/PC Insertion Loss	IL < 0.15dB
LC/PC Return Loss	RL ≥ 50dB
SC/PC Insertion Loss	IL < 0.2dB
SC/PC Return Loss	RL ≥ 50dB
Material Compliance	RoHS Compliant
Standard Compliance	YD/T 1272.5
Application	Telecom Network / Data Center / Enterprise Network / Optical Distribution System
Customization	Length, Connector Type, Polish Type, Jacket, Label, Packaging
